Case II: STAVAG on 3D planarian

import re
import STAVAG
import numpy as np
import pandas as pd
import scanpy as sc
import matplotlib.pyplot as plt
from matplotlib.colors import LinearSegmentedColormap
from scipy.cluster.hierarchy import dendrogram, linkage, fcluster

C:\Users\Administrator\AppData\Roaming\Python\Python39\site-packages\pandas\core\computation\expressions.py:21: UserWarning: Pandas requires version '2.8.4' or newer of 'numexpr' (version '2.8.1' currently installed).
  from pandas.core.computation.check import NUMEXPR_INSTALLED
C:\Users\Administrator\AppData\Roaming\Python\Python39\site-packages\pandas\core\arrays\masked.py:60: UserWarning: Pandas requires version '1.3.6' or newer of 'bottleneck' (version '1.3.4' currently installed).
  from pandas.core import (

Data loading

The data can be download from the initial data link https://ngdc.cncb.ac.cn/STAPR/ or from https://drive.google.com/file/d/1mCYDtWbniGKARG6-IM5NFmgEUYn5FhKm/view?usp=sharing.

adata = sc.read_h5ad(r'E:\Fast_SVG\Data\planarian_10x_scRNA\ST_3D\python\Visium_0hpa.h5ad')
adata.obs_names_make_unique()
adata.var_names_make_unique()
sc.pp.filter_genes(adata, min_cells=10)
mt_genes = [gene for gene in adata.var_names if gene.startswith('MT-')]
non_mt_mask = ~adata.var_names.isin(mt_genes)
adata = adata[:, non_mt_mask]
print(f"Remaining genes: {adata.n_vars}")

sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)

adata.obsm['spatial'] = np.array(adata.obs[['X_3D', 'Y_3D', 'Z_3D']])
adata.obsm['spatial_2D'] = np.array(adata.obs[['X_3D', 'Y_3D']])

Remaining genes: 19594

C:\Users\Administrator\AppData\Roaming\Python\Python39\site-packages\scanpy\preprocessing\_normalization.py:207: UserWarning: Received a view of an AnnData. Making a copy.
  view_to_actual(adata)

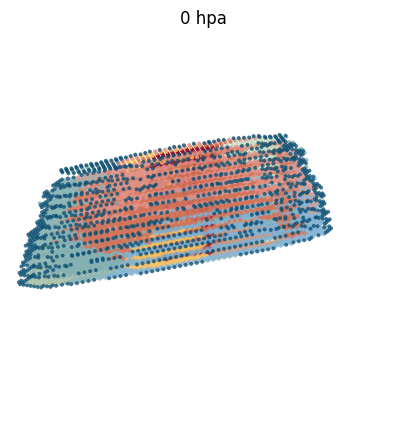

Visualize the planarian data

color_map3 =  {'Anterior body': '#84b0b1', 'Body wall-1': '#80b1d3', 'Body wall-2': '#e19388', 'CNS': '#a7c0a9',
  'Epidermis': '#0e5173', 'Genital chamber': '#cc9a81', 'Gut': '#d57358',
  'Pharynx': '#920e26', 'Protonephridia': '#c9dec3', 'Secertory': '#f6bd60'}
fig = plt.figure(figsize=[5,6])
ax = fig.add_subplot(111, projection='3d')
ax.set_box_aspect(aspect = (2.2,1,1))

ax.set_xlim([0, 5500])
ax.set_ylim([0, 6000])
ax.set_zlim([0, 500])
plt.axis('off')

ax.set_title("0 hpa")


for it, label_it in enumerate(np.unique(adata.obs['STAGATE'])):
    ad = adata[adata.obs.loc[adata.obs['STAGATE']==label_it,].index,]
    ax.scatter(ad.obs['X_3D'], ad.obs['Y_3D'], ad.obs['Z_3D']*35, alpha=0.8, marker='o',label=label_it, s=8, linewidths=0, c=color_map3[label_it])

# Plot edges
#ax.scatter(Edges_3D['Aligned_X'], Edges_3D['Aligned_Y'], Edges_3D['Section_id']*30, c='grey', marker='.', s=1, alpha=0.1)

#plt.legend(bbox_to_anchor =[1, 1])

# View setting
ax.view_init(elev=30, azim=70)
plt.show()

Detect DVGs

#The columns of coords must be at least 2
#The first column denotes the coordinates on x-axis, the second denotes the coordinates on y-axis
#while the third denotes the coordinates on z-axis
coords = adata.obsm['spatial']
# calculate DVGs along x and y axis
coord_dict = STAVAG.DVG_detection(adata, coords)
DVG_along_x_axis = list(coord_dict['x']['Feature'])
DVG_along_z_axis = list(coord_dict['z']['Feature'])

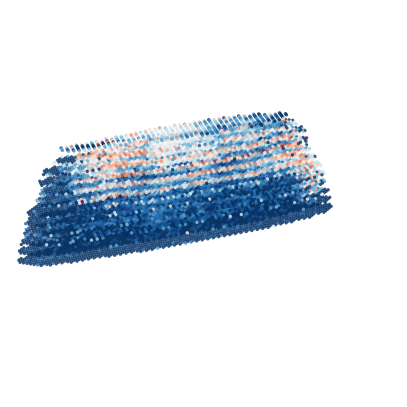

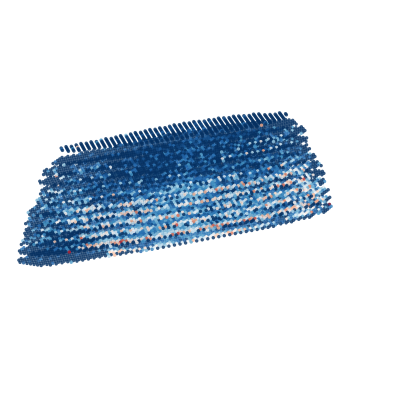

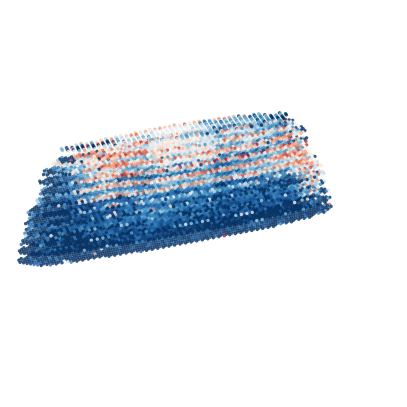

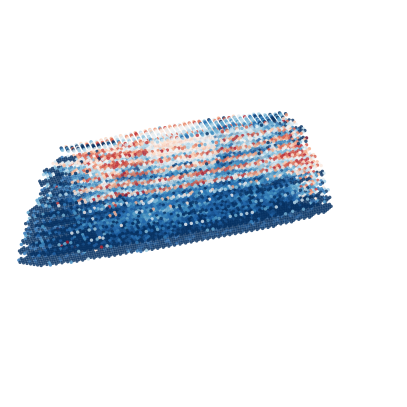

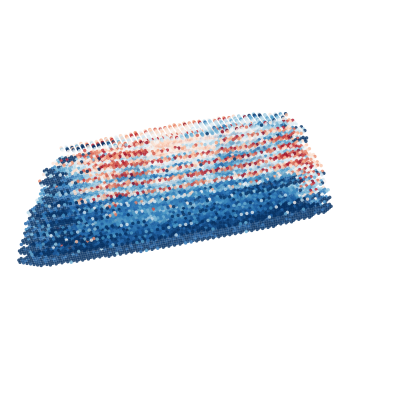

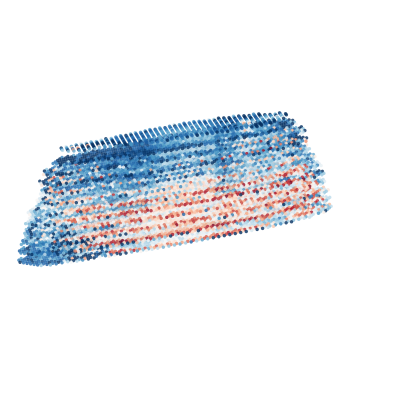

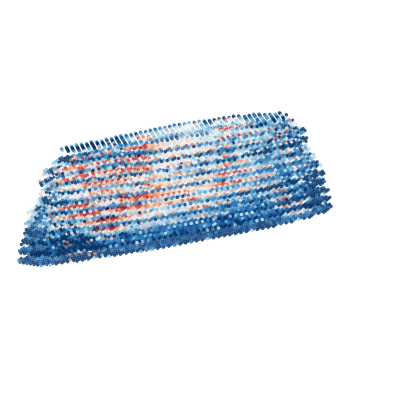

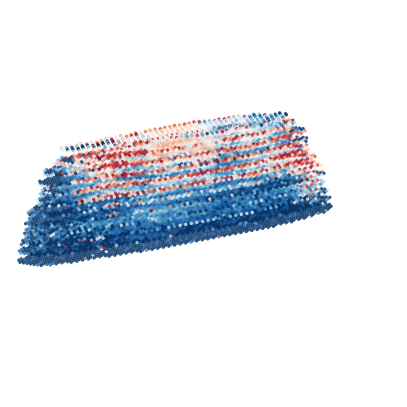

Visualize top-10 DVGs along DV axis (z axis)

########## Canvas settings ###########
# top_95_percentile = np.percentile(imp_z_rand, 95)
# imp_z_pvalue = imp_z_raw[imp_z_raw['Importance'] > top_95_percentile]

for ele in DVG_along_z_axis[0:10]:
    fig = plt.figure(figsize=[5, 6])
    ax = fig.add_subplot(111, projection='3d')
    ax.set_box_aspect(aspect=(2.2, 1, 1))  # Set 3D box aspect ratio
    print(ele)

    ax.set_xlim([0, 5500])
    ax.set_ylim([0, 6000])
    ax.set_zlim([0, 500])
    plt.axis('off')  # Turn off axis lines and labels

    # ax.set_title("Gene Expression in 3D")

    # Specify the gene to visualize
    gene_name = ele  # Replace with the gene of interest

    # Extract gene expression values
    gene_expression = adata[:, gene_name].X.toarray().flatten()  # Ensure values are in a 1D array

    # Normalize gene expression values for color or size mapping
    norm_expression = (gene_expression - gene_expression.min()) / (gene_expression.max() - gene_expression.min())

    coords = adata.obsm['spatial']

    # Plot 3D scatter plot
    scatter = ax.scatter(
        adata.obs['X_3D'],
        adata.obs['Y_3D'],
        adata.obs['Z_3D'] * 35,  # Scale Z-axis if needed
        c=norm_expression,       # Color based on gene expression
        cmap='RdBu_r',           # Change to other colormaps like "plasma" or "coolwarm"
        alpha=0.8,
        marker='o',
        s=6,
        linewidths=0
    )

    # Add colorbar (optional)
    # cbar = plt.colorbar(scatter, ax=ax, shrink=0.5, aspect=10)
    # cbar.set_label(f"{gene_name} Expression")

    # Set 3D view angle
    ax.view_init(elev=30, azim=70)

    plt.show()

SMED30017461

SMED30006104

SMED30017110

SMED30016657

SMED30008412

SMED30019638

SMED30028912

SMED30029626

SMED30015889

SMED30015977

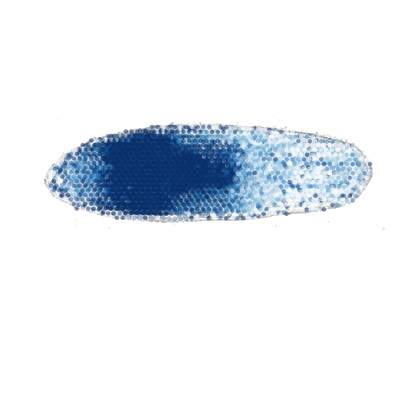

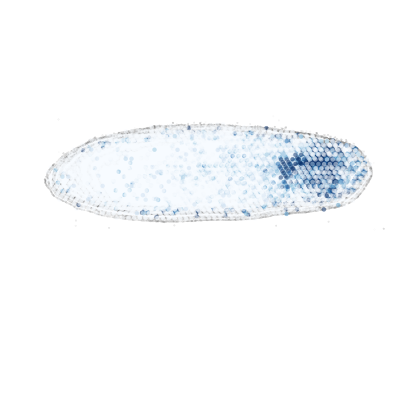

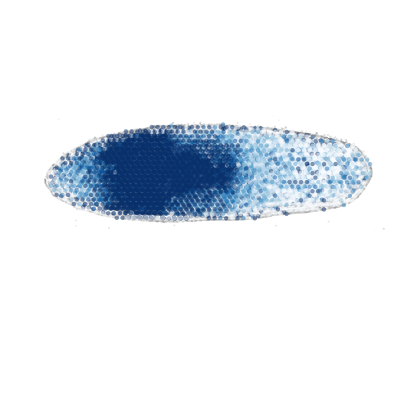

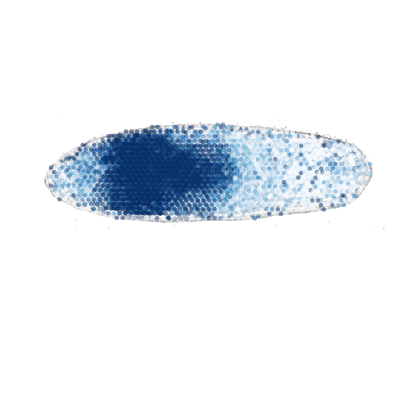

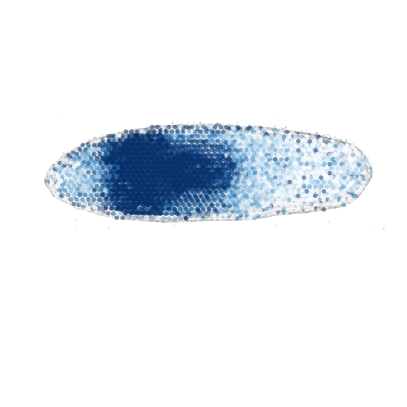

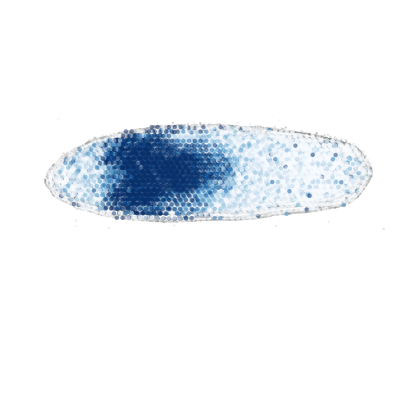

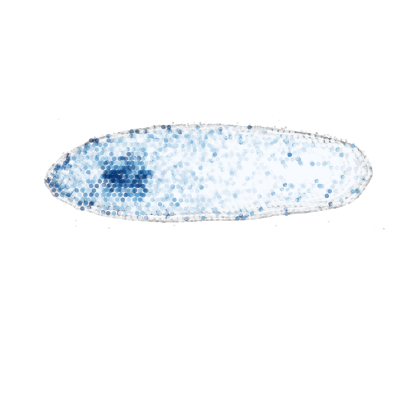

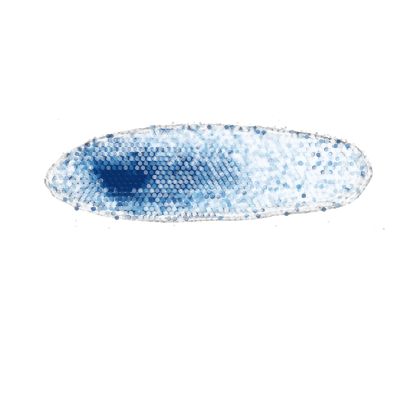

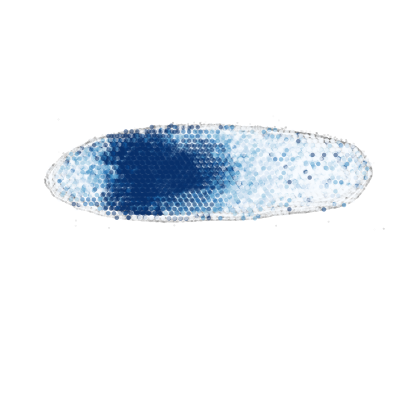

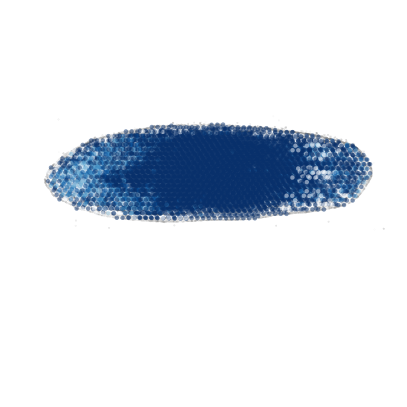

Visualize top-10 DVGs along AP axis (x axis)

def plot_3D_FISH(adata, Edges_3D, plot_gene, save=None, plot_elev=-90, plot_azim=-90, vmax=None, vmin=None):
    if (plot_gene in adata.obs.columns)==False:
        adata.obs[plot_gene] = adata[:,plot_gene].X.toarray()
    fig = plt.figure(figsize=[5,6])
    #ax = Axes3D(fig)
    ax = fig.add_subplot(111, projection='3d')
    ax.set_box_aspect(aspect = (2.2,1,1))

    ax.set_xlim([0, 6000])
    ax.set_ylim([0, 3000])
    ax.set_zlim([0, 500])
    plt.axis('off')
    #ax.set_title("Epidermal")


    ax.scatter(adata.obs['X_3D'], adata.obs['Y_3D'], adata.obs['Z_3D'].map(float), alpha=0.5, vmax=vmax, vmin=vmin, c=adata.obs[plot_gene],
               marker='o',s=10, linewidths=0,  cmap='Blues')

    #plt.legend()
    ax.scatter(Edges_3D['Aligned_X'], Edges_3D['Aligned_Y'], Edges_3D['Aligned_Z'], c='grey', marker='.', s=0.1, alpha=0.1)


    ax.view_init(elev=plot_elev, azim=plot_azim)

    if (save is None)==False:
        plt.savefig(save, dpi=300, bbox_inches='tight')

Edges_3D = adata.uns['Edges_3D']
for it in range(10):
    plot_gene = DVG_along_x_axis[it]
    print(plot_gene)
    plot_3D_FISH(adata, Edges_3D, plot_gene, save=None, vmax=1)
    plt.show()

SMED30013776

SMED30019357

SMED30023762

SMED30029969

SMED30028226

SMED30032991

SMED30011206

SMED30009662

SMED30022285

SMED30004645
