Case I: STAVAG on 2D cSCC data

import re
import STAVAG
import numpy as np
import pandas as pd
import scanpy as sc
import matplotlib.pyplot as plt
from matplotlib.colors import LinearSegmentedColormap
from scipy.cluster.hierarchy import dendrogram, linkage, fcluster

C:\Users\Administrator\AppData\Roaming\Python\Python39\site-packages\pandas\core\computation\expressions.py:21: UserWarning: Pandas requires version '2.8.4' or newer of 'numexpr' (version '2.8.1' currently installed).
  from pandas.core.computation.check import NUMEXPR_INSTALLED
C:\Users\Administrator\AppData\Roaming\Python\Python39\site-packages\pandas\core\arrays\masked.py:60: UserWarning: Pandas requires version '1.3.6' or newer of 'bottleneck' (version '1.3.4' currently installed).
  from pandas.core import (

Data loading

The data can be download from Gene Expression Omnibus (GEO) database with accession code GSE144240.

data = pd.read_csv(r"E:\Fast_SVG\Data\Human Squamous Cell\Data\GSM4284316_P2_ST_rep1_stdata.tsv.gz", sep='\t', compression='gzip',index_col=0)
adata = sc.AnnData(data)
sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)

spot = pd.read_csv(r'E:\Fast_SVG\Data\Human Squamous Cell\Data\GSM4284316_spot_data-selection-P2_ST_rep1.tsv.gz', sep='\t', compression='gzip')
spot['combined'] = spot['x'].astype(str) + 'x' + spot['y'].astype(str)
row_numbers = [int(re.search(r'(\d+)x', idx).group(1)) for idx in data.index]
col_numbers = [int(re.search(r'x(\d+)', idx).group(1)) for idx in data.index]
adata.obsm['spatial'] = np.array(pd.DataFrame([row_numbers, col_numbers]).T)
adata.obsm['spatial'][:,1] = -1*adata.obsm['spatial'][:,1]
adata = adata[adata.obs.index.isin(spot['combined'])]

Detect DVGs along y axis

We usually select genes whose contribution scores are above the 95th percentile of scores from randomly permuted genes and we also support calculating STAVAG priority scores with parameter “sps=True” for the function DVG_detection().

threshold=0.05 is default for DVG_detection(), you can set a higher value, i.e, 0.10, 0.20 for more DVGs.

#The columns of coords must be at least 2
#The first column denotes the coordinates on x-axis while the second denotes the coordinates on y-axis
coords = adata.obsm['spatial']
# calculate DVGs along x and y axis
coord_dict = STAVAG.DVG_detection(adata, coords, threshold=0.05)
#coord_dict now include the DVGs along x aixs in coord_dict['x'] and DVGs along y aixs in coord_dict['y']
DVG_along_y_axis = list(coord_dict['y']['Feature'])

Gene modules detection

Z, corr, df = STAVAG.gene_modules(adata, DVG_along_y_axis)
plt.figure(figsize=(30, 6))
ax = plt.gca()
labels = ax.get_xticklabels()

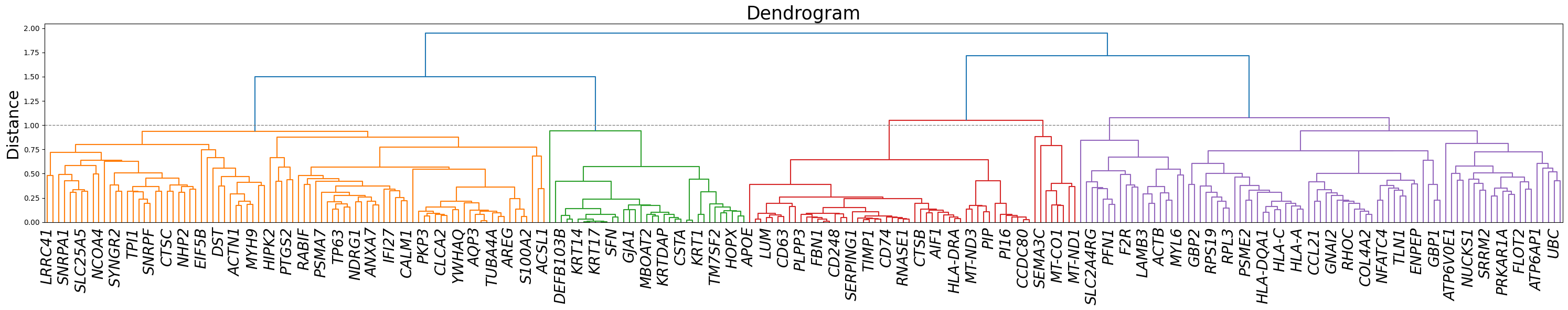

dendro = dendrogram(Z, labels=corr.columns, leaf_rotation=45)
ax = plt.gca()
labels = ax.get_xticklabels()

for i, label in enumerate(labels):
    if i % 3 != 0:
        label.set_visible(False)
plt.axhline(y=1, color='gray', linestyle='--', linewidth=1)
plt.title("Dendrogram", fontsize=25)
plt.ylabel("Distance", fontsize=22)
plt.xticks(fontsize=20, fontstyle='italic', rotation=90)
plt.tight_layout()
plt.show()

max_clusters = 6
clusters = fcluster(Z, max_clusters, criterion='maxclust')

Visualize the gene modules on spatial data

plt.rcParams['figure.facecolor'] = 'white'  # Set the overall figure background to white
plt.rcParams['axes.facecolor'] = 'white'    # Set the axes background to white
sc.set_figure_params(scanpy=True, dpi=80, dpi_save=300, figsize=(3.3, 3.5))  # Configure Scanpy's default figure settings

# Define a custom colormap using a list of colors
colors = ["#8ec8e1", "#219cb9", "#03314a", "#eed094", "#e18a02"]
cmap = LinearSegmentedColormap.from_list("my_cmap", colors, N=256)

# Map clustering results to column names
cluster_labels = {name: cluster for name, cluster in zip(corr.columns, clusters)}

# Create an empty DataFrame for each moules to store the corresponding columns
cluster_groups = {i: pd.DataFrame() for i in np.unique(clusters)}

# Assign columns to their corresponding cluster DataFrame
for col in df.columns:
    cluster = cluster_labels[col]
    cluster_groups[cluster][col] = df[col]

# Compute the average value across columns for each module
count = 1
for cluster, data in cluster_groups.items():
    mean_values = data.mean(axis=1)
    #print(data.shape[1])
    adata.obs['Module_'+str(count)] =  mean_values

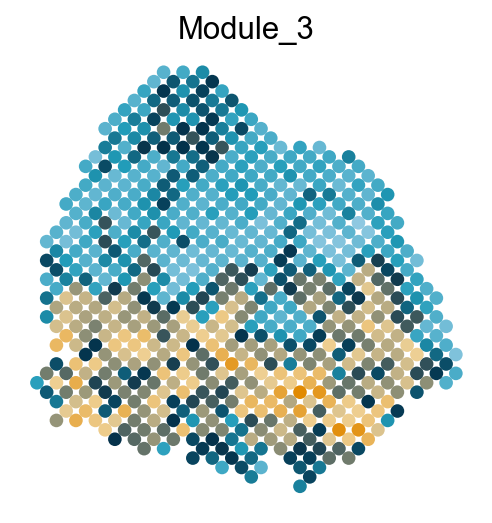

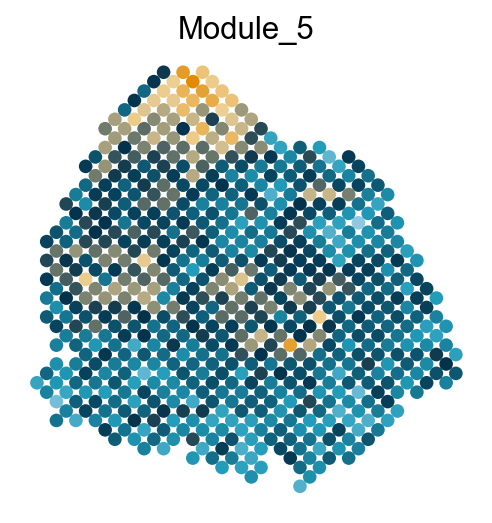

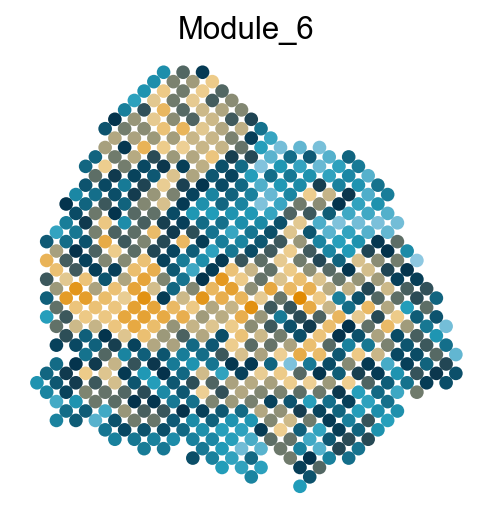

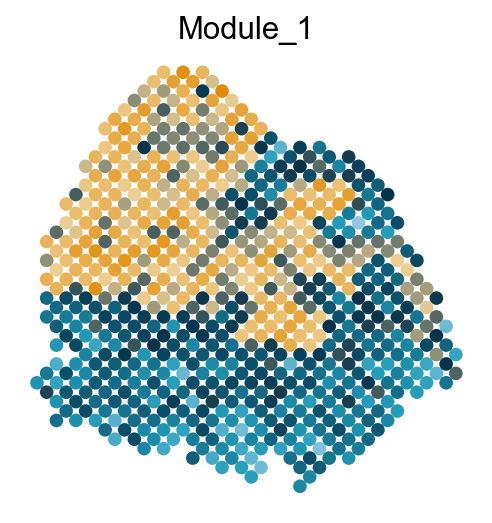

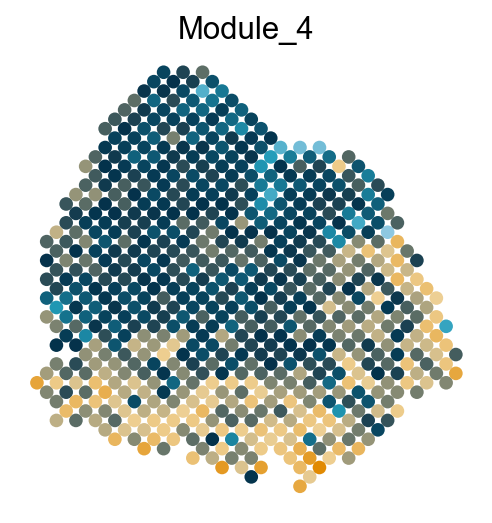

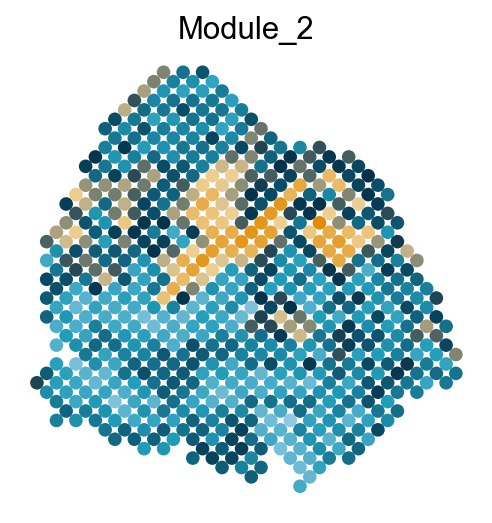

    sc.pl.embedding(adata, basis='spatial', color='Module_'+str(count), legend_loc='none', cmap=cmap, s=150, frameon=False,
                     colorbar_loc=None, title=None, show=False)
    plt.tight_layout()
    count += 1

C:\Users\Administrator\AppData\Local\Temp\ipykernel_23020\2283339656.py:17: ImplicitModificationWarning: Trying to modify attribute `.obs` of view, initializing view as actual.
  adata.obs['Module_'+str(count)] =  mean_values

Export DVGs and corresponding modules

gene_cluster = pd.DataFrame([DVG_along_y_axis,clusters]).T
gene_cluster.columns = ['gene', 'modules']
gene_cluster.head()
#gene_cluster.to_csv('DVGs_cSCC.csv')

	gene	modules
0	CCDC80	3
1	CFD	3
2	MT-CO1	4
3	DCD	3
4	DCN	3
